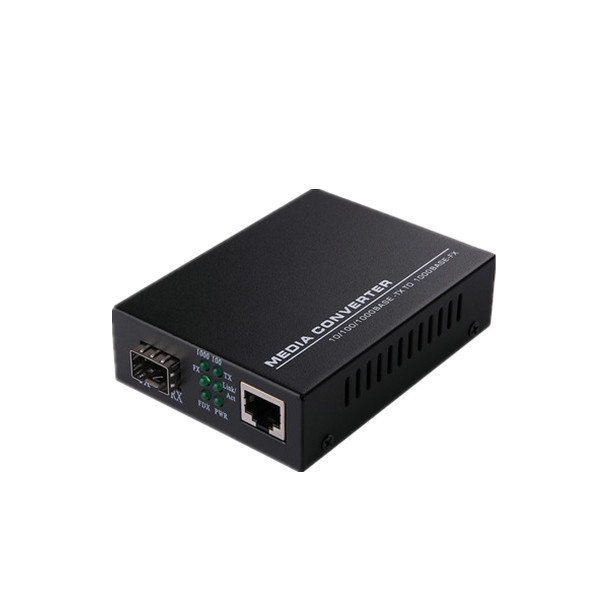

Factory Price 10/100/1000M Fiber Converter Gigabit Ethernet SFP Media Converter

Description

1. 10/100m sfp optical media converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
2. It could extend traditional 10/100M Fast Ethernet to the distance of 90km through single optical fiber link. It possesses stable performance and good quality by adopting latest IC from USA and Taiwan.
3. It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters.
4. It is easy for users to observe network operation.

Feature

• 1000Base-T to 1000BASE-SX/LX Converter
• Standard : IEEE 802.3z & 802.3ab
• Interface: 1 x RJ-45 connector
• 1 x SFP Slot
• MDI/MDIX Auto-Crossover supported
• LED: Power , DUP,FP-LINK,RX,1000,TX
• Plug-and-Play installation
• Support Link Alarm
• Support Jumbo Frame (64-9216 Byte)
• Support Voltage Monitor
• Supporting 1600 bytes packet for management.
• Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
• Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
• Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

Specificaion

1. Standard Protocol:IEEE802.3u,10/100Base-TX and 100Base-FX;
2. Connector:UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
3. Cable UTP: Cat. 5 UTP cable (the max distance up to100m)
4. Operation mode: full duplex mode or half duplex mode
5. LED Power, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
6. Power supply parameter:
7. Outside: 5V DC 1A Built-in: 110-265V AC 48VDC
8. Environmental temperature: 0℃-60 ℃
9. Relative humidity: 5%-90%
10. TP cable: Cat5 UTP cable
11. Fiber :50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.
12. Dimensions: External power supply: 26mmx 71mm x 94mm

Installation:

Attach fiber cable from the converter to the fiber network. The fiber connections must be matched – transmit socket to receive socket.

Attach a UTP cable from the 1000BASE-T network to the RJ-45 port on the converter.

Connect the power adapter to the converter and check that the Power LED lights up. The TP-Link and RX LEDs will light up when all the cable connections are satisfactory.

LED Description:
